A short mission explantion

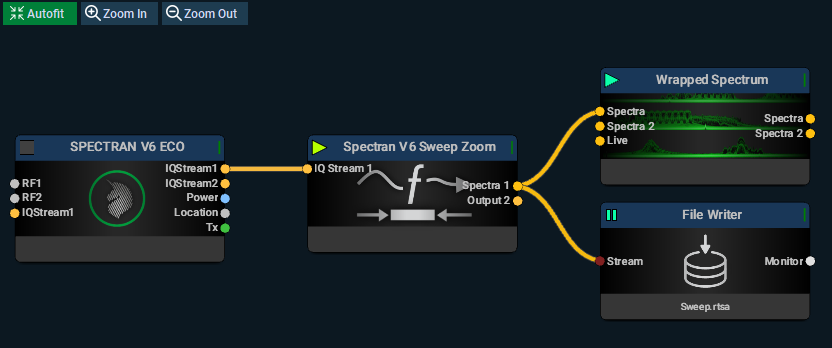

An explantions of all the blocks used in this mission
Spectran V6 Plus Block or Eco Block
This is the hardware block, and you can choose either the Plus or Eco model.
https://v6-forum.aaronia.de/forum/topic/spectran-v6-block/
Spectran V6 Sweep Zoom
Enabled the Spectran V6 to act as a swept FFT spectrum analyzer.
Wrapped Spectrum
Show the spectrum in multiple rows, 4 rows but even higher with a license.
https://v6-forum.aaronia.de/forum/topic/wrapped-spectrum/
File Writer
The File Writer in this mission will only record sweept data. What you end up seeing in the software, will be the same when you record it.
