2.4 GHz with 3D (real-time, w/demo file)

Custom missions made by Kjetil Teigen Hansen

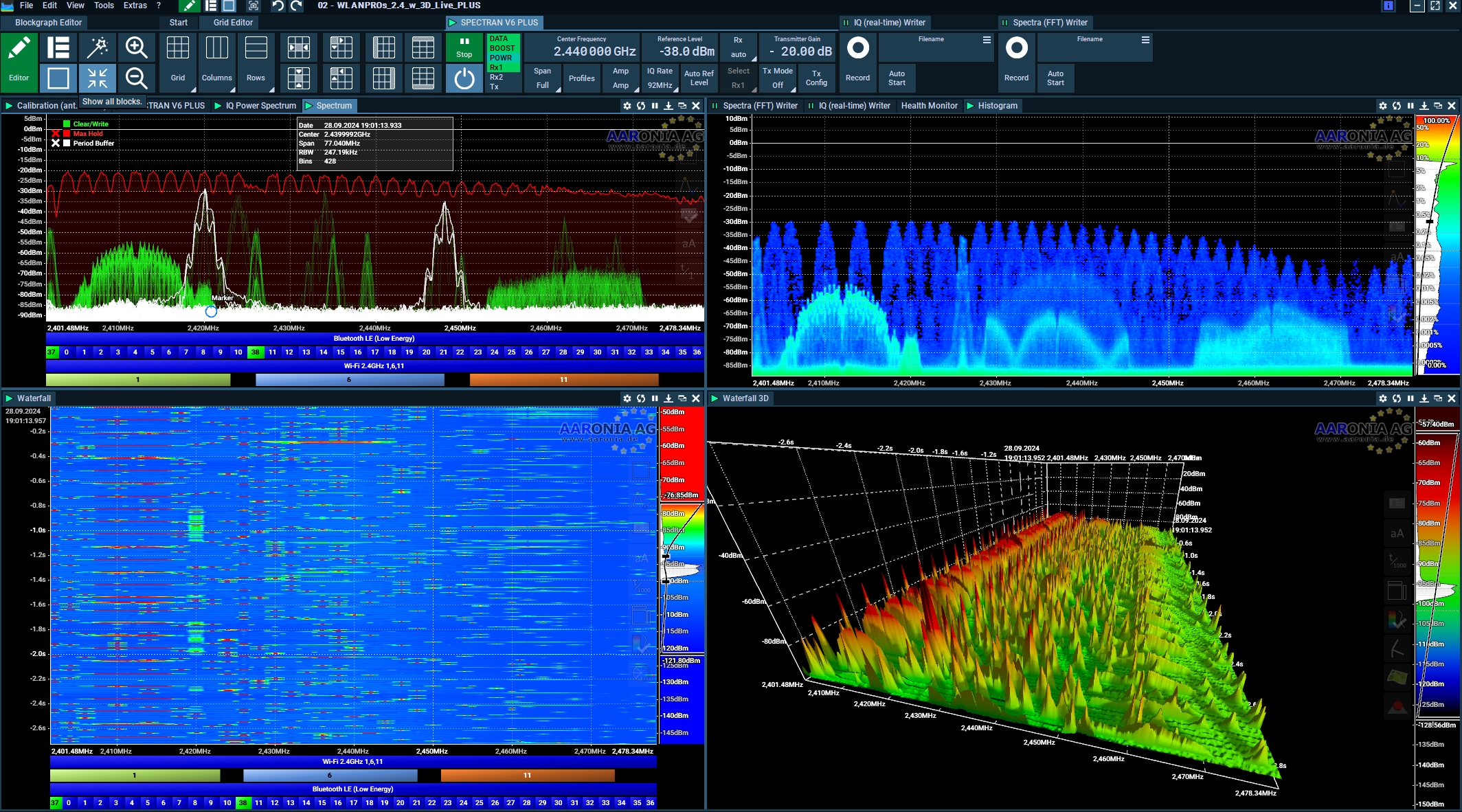

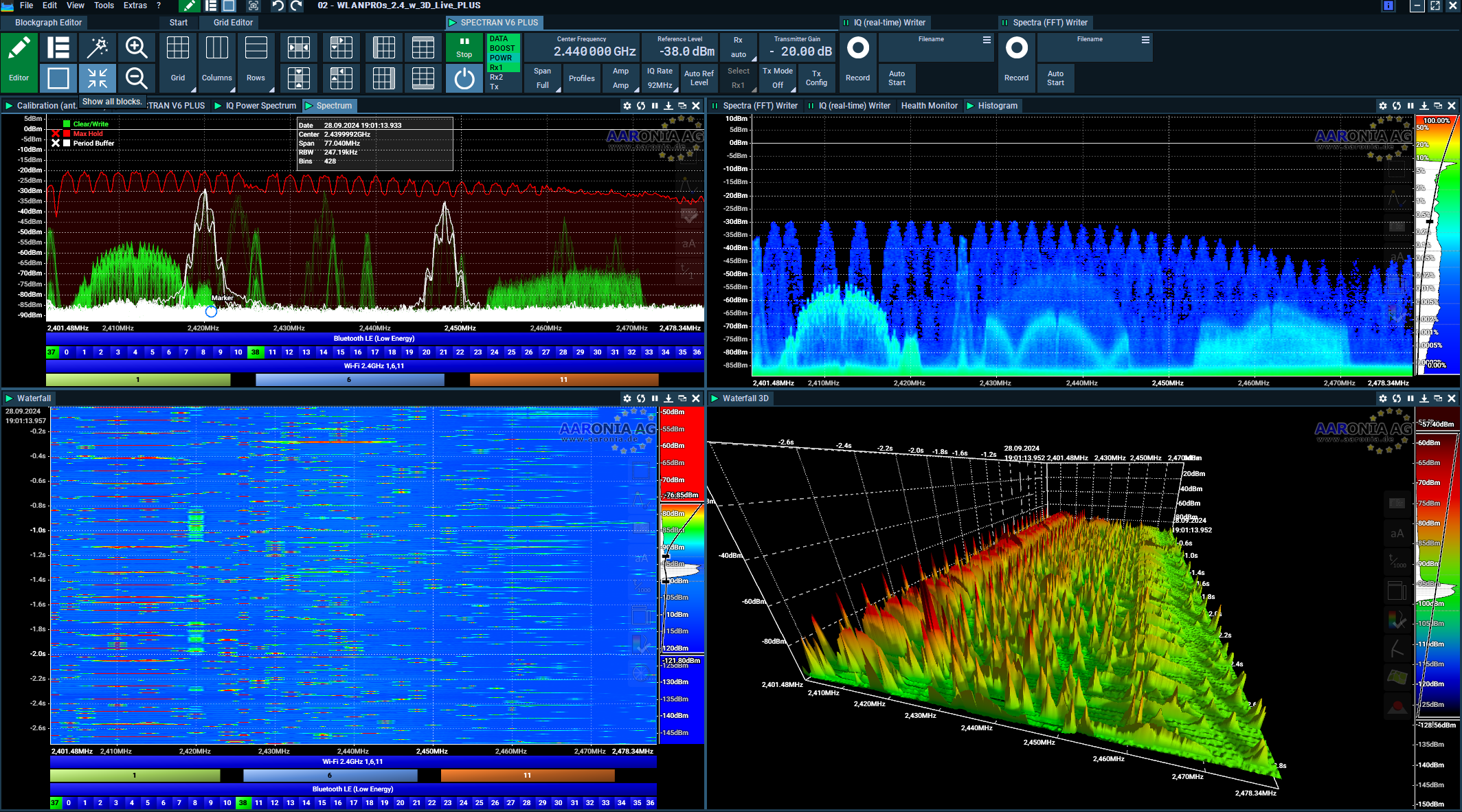

This is one of my custom missions that can be downloaded below, it is just an edited version of the real-time mission where I have done some minor changes and added the 3D waterfall.

I was trying to make it look like Cisco Spectrum Expert, it included File Writer to Spectra or IQ and a very fancy 3D waterfall. You should try and turn off Wi-Fi on your phone, then turn it on again while looking at this mission, it is so cool to look at. Have fun.

Change the Reference Level, and color pallete since the antenna you use can be a bit different from my antenna. So it will most likely not look exactly like this when you start the mission. The Calibration block is added if you need to add an antenna.

Spectran V6 Plus Mission:

46KB

02 - WLANPROs_2.4_w_3D_Live_PLUS.rmix

Open

Spectran V6 Eco Mission:

49KB

WLANPROs_2.4_w_3D_Live_ECO.rmix

Open

Spectran V6 Eco only have 44MHz RTBW, so it will not cover the entire 2.4GHz in real-time.

Download a "real-time" file here:

This file is first converted to Spectra, so there is no phase information saved. This would make the file to big, and 1 second of 2k spectra would go over the 100MB limit per file here at Gitbook.

81MB

2_4_real-time_spectra.rtsa

Open

File Reader Mission

Here is an updated mission to read the file above, it will loop so histogram just "blink" but still a good demo to play a bit with the software and other blocks.

43KB

Spectrum_Expert_Reader.rmix

Open
